Reasoning in TLA [5] consists largely of reasoning about actions. By most accounts, 90% of all reasoning in TLA+ specifications [4] occurs at the action level, where temporal logic has been eliminated. Action reasoning alone, for example, is involved in all but the last step of establishing an invariant of a specification. Consider a system with starting state Init and next-state relation Next. In order to establish an invariant Inv of the system, we need two lemmas:

1. Init => Inv
2. Inv /\ Next => Inv'

Once we establish these two lemmas, one application of a TLA inference rule, along with simple temporal reasoning, lets us establish the invariant at the temporal level (the formula []Inv). In the Disk Synod algorithm [1], establishing []Inv from formulas like (1) and (2) above takes up one page, while the creation of an invariant and its verification at the action level spans 18 pages.

Our goal is to provide mechanical support for proving TLA+ invariants at the action level. A system that deals effectively with action-level formulas would take us a long way in mechanically checking the correctness of specifications.

Our platform of choice for mechanical verification is ACL2 [1]. The ACL2 system is attractive for several reasons. It is among the most automated in the spectrum of theorem provers. It blends arithmetic decision procedures with rewriting techniques. Finally, it is a stable and robust system, designed to tackle industrial-size verification projects.

2. A Mechanical Translator

A first experiment at the University of Texas at Austin [7] consisted in manually translating the Disk Synod algorithm into ACL2 and verifying two invariants of the algorithm. The goal of the summer project was to automate the translation. We wrote a proof-of-concept TLA/ACL2 mechanical translator. The translation scheme is largely based on ACL2's finite set theory [6]. Note the keyword finite in the previous sentence: the translator handles a subset of TLA+ concepts, and infinite sets are not allowed.

Our translator not only translates TLA+ specifications, but also structured proofs [3] of conjectures about the specifications. In writing a structured proof, we mark some reasoning steps as ``checked by ACL2'' and leave others unmarked (Figure 1). We use ACL2 to check only those steps marked as ACL2 steps. The idea is that, short of mechanically verifying every step of a proof, a user might first want to explore pieces of a proof that are not entirely clear or where he lacks confidence. Also, we want to use ACL2 only on steps where it is appropriate to use ACL2: low-level, quantifier-free formulas.

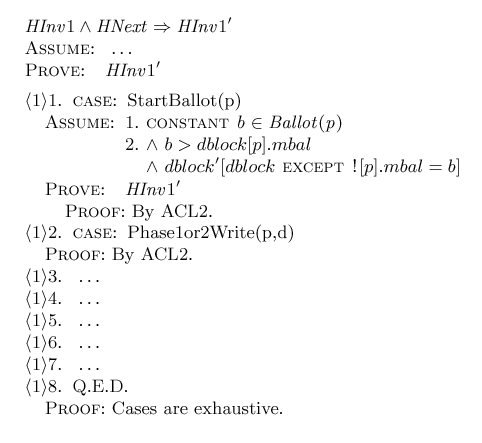

Figure 1. A portion of the proof of invariant HInv1 in the Disk Synod algorithm.

Our translator handled the entire TLA+ specification of Disk Synod and two structured proofs of invariants of the algorithm (invariants I2a and I2c in the Disk Paxos paper [1]). We used ACL2 to check most steps of these invariants. The few steps we avoided were obviously correct high-level steps such as step <1>8 in Figure 1 above, whose correctness follows by the fact that steps <1>1 through <1>7 (not shown in detail in Figure 1) establish the invariant for every disjunct of HNext, the next-state action.

Our effort led us to discover some needed hypotheses that were absent in the original structured proofs.

4. Conclusion

ACL2 is a general-purpose theorem prover, and one can use it to verify every step of a proof in almost any mathematical domain, from real analysis to circuit design. In our first experiments, we used ACL2 to verify every step in the proofs of I2a and I2c. More than half our time was spent trying to reason about simple steps in higher-level concepts like quantification. The main drawback in using ACL2 is the different levels of abstraction at which TLA+ and ACL2 users commonly operate. ACL2 theories are usually fairly low-level, concrete and computational. On the other hand, TLA+ specifications tend to be more descriptive than constructive, and make liberal use of higher-level concepts which are difficult to handle in ACL2's first-order, essentially quantifier-free logic.

Our second approach was to use ACL2 only where it might be suitable--closer to the leaves of a proof, where quantification has been eliminated and all that remains are large but low-level formulas. Although low-level, these formulas are nontrivial and can be a challenge for any theorem prover. Moreover, it is most often in these elaborate steps where errors are uncovered. It is to ACL2's credit that it did so much work with little guidance. At the correct level of abstraction, the prover not only helped us verify statements, but it also pointed the way to omissions and errors with remarkable precision.

In further work, we would continue focusing ACL2's attention on low-level segments of TLA+ proofs, refining our tools and lemma libraries to increase the prover's power in this restricted domain. For the remaining high-level steps of TLA+ proofs, we might recruit a different theorem prover with a logic more expressive than ACL2's. A future proof checker for TLA+ might, in addition to steps labeled ``checked by ACL2,'' also have steps labeled ``checked by X'' where X is a different theorem prover. The framework for structured proofs we have followed allows for collaboration among multiple provers (each with its own particular strengths) in attacking a verification project.

A. References

[1] Eli Gafni and Leslie Lamport. Disk Paxos. in Maurice Herlihy, editor, Distributed Computing: 14th International Conference, DISC 2000 Lecture Notes in Computer Science number 1914, pages 330-344, Springer-Verlag, 2000. [2] Matt Kaufmann, Panagiotis Manolios, and J Strother Moore, Computer-Aided Reasoning: An Approach, Kluwer Academic Publishers, 2000.

[3] Leslie Lamport. How to Write a Proof. American Mathematical Monthly 102, 7 (August-September 1993)} pages 600-608.

[4] Leslie Lamport. Specifying Concurrent Systems with TLA+. In M. Broy and R. Steinbruggen, editors, Calculational System Design. IOS Press, Amsterdam, 1999.

[5] Leslie Lamport. The Temporal Logic of Actions. ACM Transactions on Programming Languages and Systems, 16(3):872-923, May 1994.

[6] J Moore. Finite Set Theory in ACL2. TPHOLS 2001, Edinburgh, September 2001.

[7] Carlos Pacheco. Reasoning about TLA Actions. Undergraduate Honors Thesis. Technical Report TR01-16, Department of Computer Sciences, The University of Texas at Austin, May 2001.
