Switched Ethernets are popular for their ability to isolate traffic between different pairs of hosts for performance and security. The increase in aggregate bandwidth allows switched networks to scale larger than broadcast networks using hubs. This larger scale makes switched networks more vulnerable to common network pathologies. The pathologies we address in this paper include:

1) broadcast storms
2) ARP fights

2 Pathologies

Broadcast storms occur when a buggy or malevolent host emits a continuous stream of broadcast packets. Broadcast packets cannot be switched and must traverse each link in the network. This allows a single host to execute a denial-of-service attack on all other hosts on the same subnet.

ARP fights occur when two hosts with different MAC (layer 2 hardware) addresses conflict for the same IP address. ARP is the protocol used to map IP addresses to MAC addresses for transport of IP traffic over a local network. It is not suited to resolving conflicting responses. This often happens due to misconfiguration or buggy DHCP implementations, and could be used by a misbehaving host as part of a man-in-the-middle attack.

We have developed a tool, named Vincent, to determine the source of broadcast storms and disable the offending network segment. The tool understands the switched network topology using a standard SNMP interface and minimal information. Another tool monitors the broadcast traffic associated with ARP requests, and verifies the stability and lack of conflict in the IP to MAC address mapping. Both tools alert the system administrator via electronic mail, and, in the case of broadcast storms, take action.

3 Topology Discovery

Understanding the switched network topology is important for two reasons. First, it helps in deciding which port to disable when misbehavior occurs. Second, it allows our tool to help in physically locating misbehaving hosts.

Our approach uses the forwarding database (FDB) of each switch. The FDB maps each MAC address to a switch output port, analogous to the forwarding table of an IP router. Since switch topology is restricted to that of a tree, either by physical connection or by use of the spanning tree protocol, topology discovery is the process of recovering that tree.

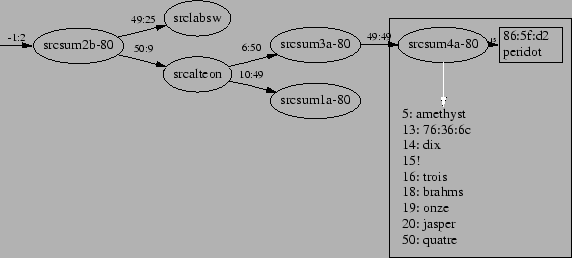

Figure 1: Sample, abridged, topology.

4 Broadcast Storm Detection

Broadcast storms are detected and localized in two ways. First, a packet sniffer in non-promiscuous mode can see all broadcast traffic. Seeing more than  packets in  seconds implies that a broadcast storm is underway. It is likely that the packet is correctly addressed, and that knowing the source mac address and the network topology will point to a particular switch port to be disabled.

If the packet sniffer fails at determining the source, possibly because of incorrectly formatted packets or because the misbehaving host has not been seen on the network before, the per-port broadcast ingress packet counters can be used to trace broadcast packets to their source. This is, however, a less timely detector, since retrieving these counters from the switch is a somewhat heavyweight operation, and thus cannot be executed often.


5 Broadcast Storm Resolution
After enough packets have been seen over a 1 second interval to warrant action, the source's port is disabled. The port will be reenabled after the passage of an interval, which doubles each time the source port is disabled.

Figure 2: Shutoff of broadcast traffic

The packet sniffer watches for ARP requests, which are, by nature, broadcast to all hosts. Vincent enqueues both the source and destination IP addresses from the ARP request for verification. This queue is used to reduce the overall traffic load imposed on the network by Vincent.

Every second, Vincent chooses the next IP, and sends an ARP request. If two conflicting responses are received, then two machines have decided to use the same IP address. Vincent then notifies the administrator by electronic mail.


7 ARP Fight Resolution

It is possible for Vincent to choose one of the conflicting hosts to stay in the network and disable others. However, the best policy is not clear. Should the host having the IP address for the longest time be entitled to continue using it? Probably, but it might be an address allocated by DHCP, for which the host (for any number of reasons) has not properly renewed the lease. Without a better understanding of what the DHCP server intends, our response is limited to notifying the administrator.

There are some interesting possibilities in this domain.

First, the ISC DHCP server includes a flat text file containing its IP to MAC address mappings. Any that contradict this list would be disabled. Ideally, the DHCP protocol would include provision for such verification.

Second, some institutions keep a list of MAC addresses that are allowed to obtain an IP address via DHCP. This list includes the user who owns the machine, which would make it particularly easy to notify the parties involved.

8 Conclusion

Our tool, Vincent, is able to recover the topology of a switched ethernet using commonly available information from SNMP. This feature alone makes it particularly useful to network administrators interested in planning improvements to the network infrastructure.

With this understanding of host location, it becomes possible to disable the ports of these switches that connect to misbehaving hosts. By disconnecting these hosts, it is possible to preserve connectivity between correctly-behaving hosts. Vincent disables some misbehaving hosts, and reports misbehavior to the network administrator.
